Water supply system: Filtration and transfer at waterworks; Pressure boosting in main pipe
Industrial applications: Washing & cleaning systems, boiler feeding cooling water circulation, water treatment systems, and auxiliary systems
Fire-fighting system

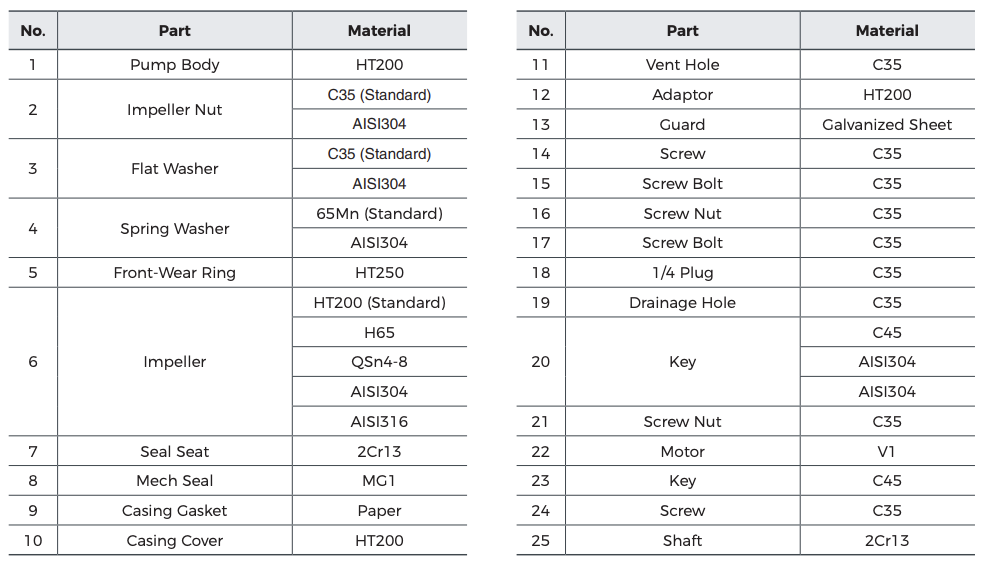

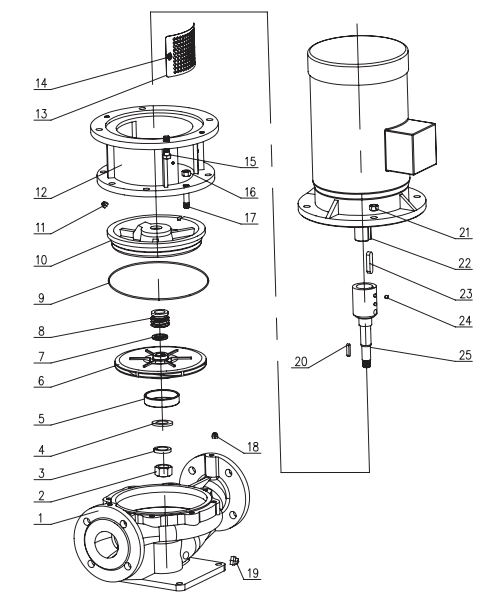

Design & Structure
Product Standards: BS EN733/DIN24255
Flange Standard: DIN2501 PN16, GB/T17241.6 PN16(The inlet & outlet flange could be customized according to other flange standard such as ANSI, JIS, GOST)
Working Conditions
Clean, thin, non-aggressive, non-flammable, explosive, and gas free liquid that does not contain solid particles (particle size ≤ 0.2mm) and fibers, and the liquid cannot react chemically to the pump material.
Liquid Temperature: -10°C ~ +110°C
Environment Humidity: Relative humidity must not exceed 95%
