Wastewater drainage in factories, construction sites and commercial facilities
Drainage system in municipal sewage treatment plants
Drainage station in residential quarters
Municipal projects
Methane pools and field irrigation in countryside

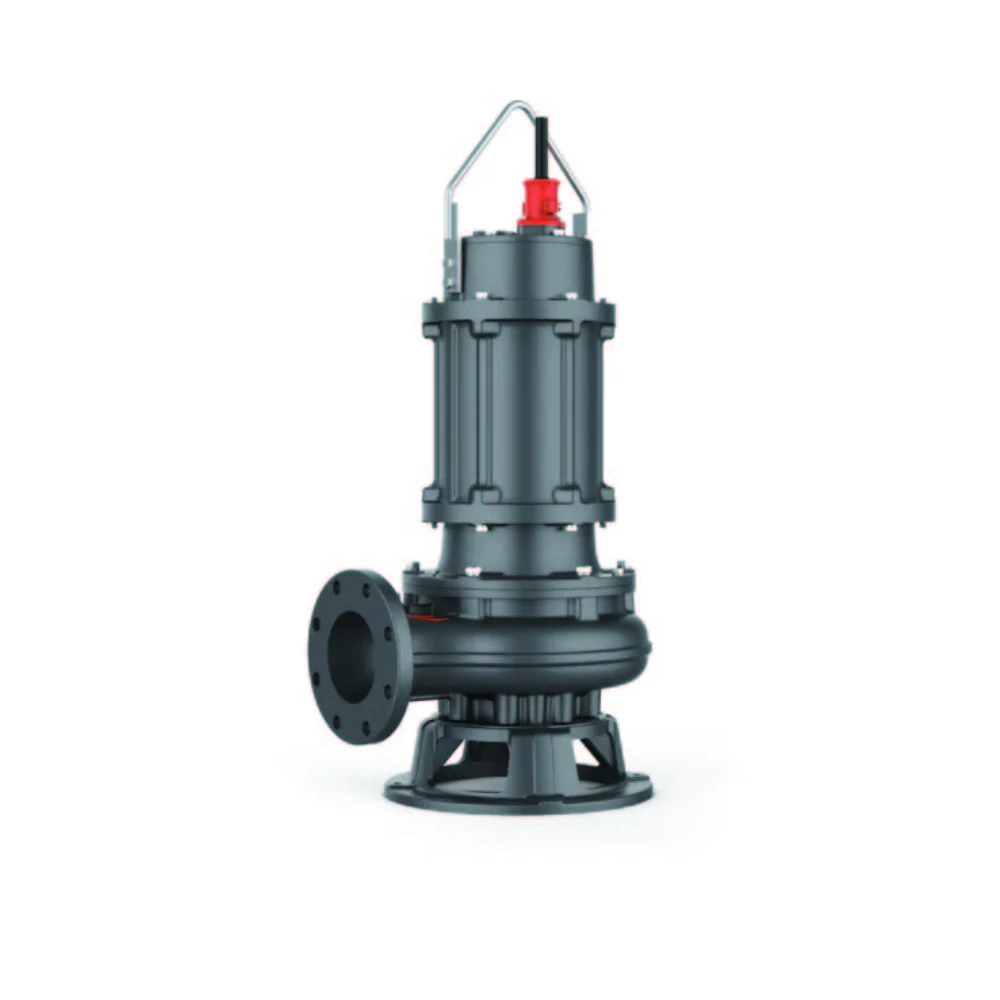

Pump
Max. immersion depth: 10 m
0.25-4kw, Standard PN6 pump body with hose coupling 5.5-7.5kw, Standard PN6 pump body with hose coupling, optional PN10 pump body, without hose coupling 11-22kW, Standard PN10 pump body, without hose coupling, optional PN6 pump body with hose coupling
Can be equipped with hose connection can choose flange connection
Cable Length: 10m (under 30kW), 8m (30~45kW)
Max. liquid temperature: up to +40℃
Liquid PH value: 4 – 10
Max.liquid density: 1.3×103 kg/m3
Allowed by the particle diameter: 20 – 80 mm
Single phase optional
Motor
Copper winding
Insulation class: F
Enclosures class: IP68
Motor protection: 0.25 – 4kW(5.5kW and above need control cabinet)
0.25-4kW: Star connection; 5.5-37kW: Delta connection; 45kW: Star-triangle connection
