Standard Centrifugal Pump

Application

• Circulation and transfer of clean, chemically non-aggressive water and other liquids
• Water supply & irrigation
• Water circulation in air conditioning systems
• Fire fighting system

Operating Conditions

• Delivery: up to 220 m3 /h
• Head: up to 95 m
• Liquid temperature: Standard -10℃ to 85℃
• Maximum operating pressure: 12 bar (PN12)
• Anti-clockwise rotation when facing pump’s suction port
• Impeller: HT200
• Mechanical seal in compliance with DIN 24960
• Lubricated by internal recirculating pumped liquid
• Counter flange available on request

Motor

• Closed construction, external ventilation
• Insulation class: F
• Enclosures class: IP54 (optional configuration: IP55)
• Performance in compliance with CEI 2-3 (IEC 34.1)
• Max.ambient temperature: +40℃
• Overload protection
• For model that ≥9.2kw: Equiped with IE2 motor, IE3 motor available on request.  For model that ≤7.5kw, the following 4 models can equiped with IE3 motor. (XST40-160/30、XST40-160/40、XST50-160/55、XST50- 160/75)

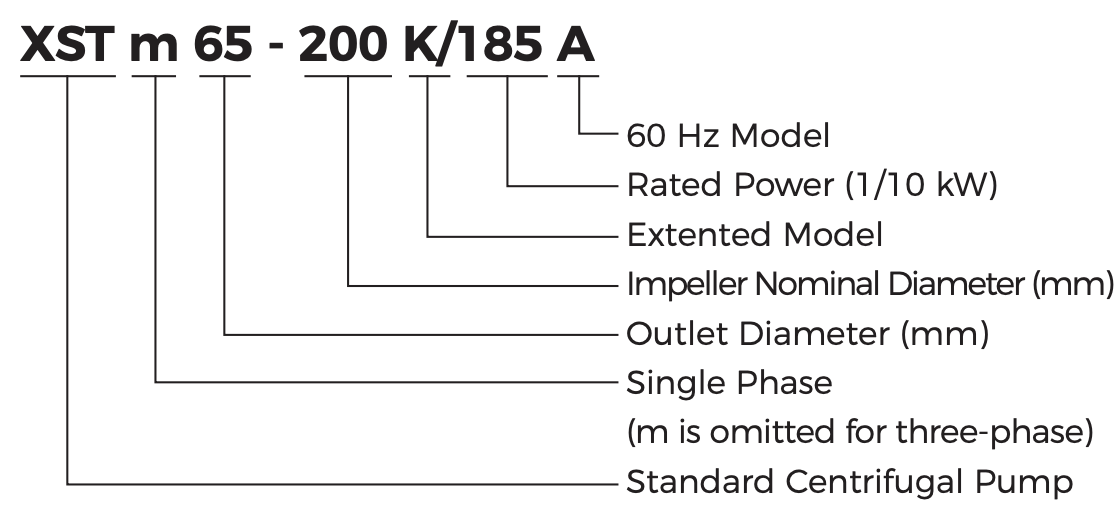

Identification Codes
